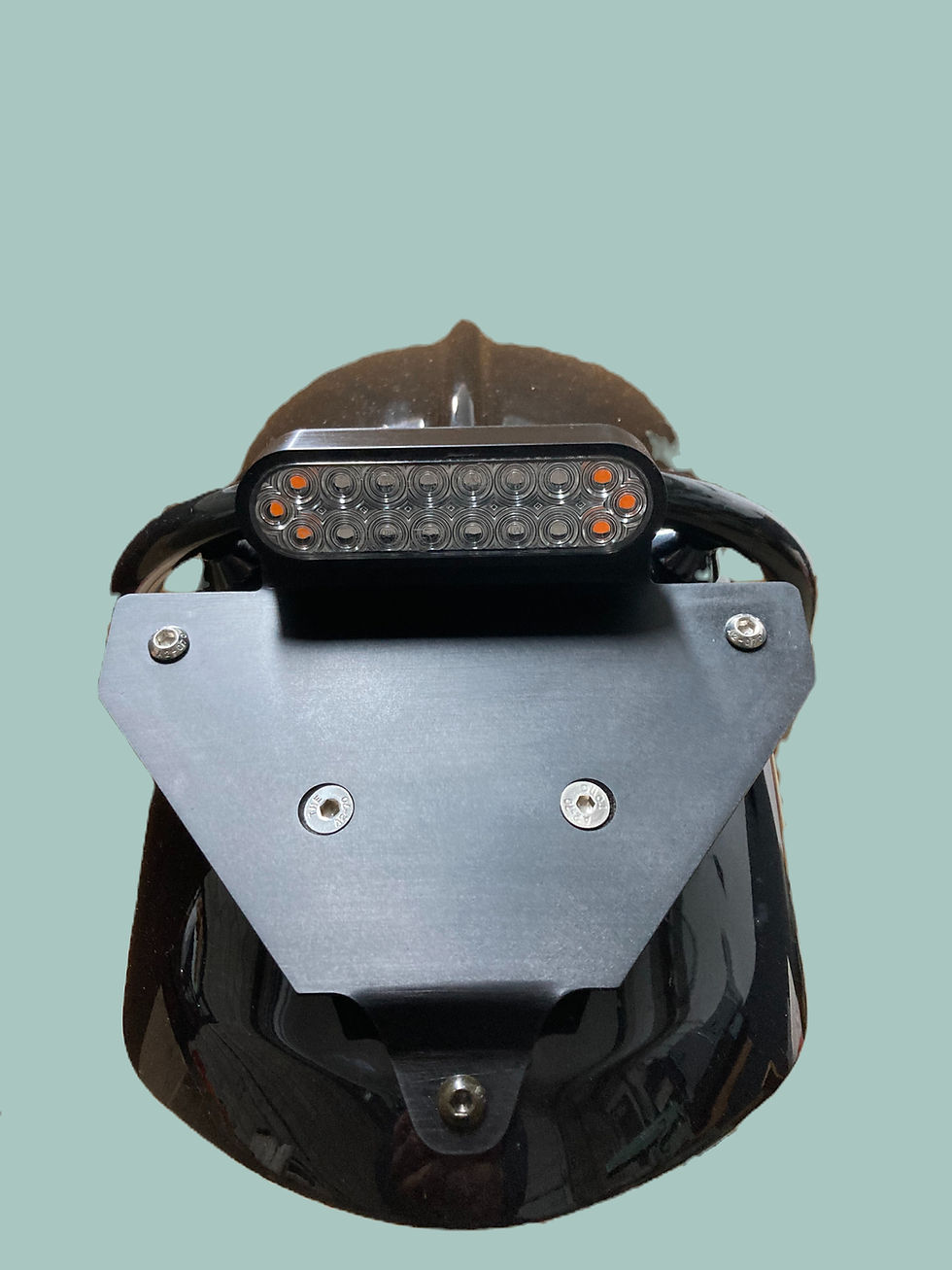

Hey! I've made myself a time machine and transported myself to the present day. On arrival I was so impressed with the Hinckley Triumph twins on arrival I was inspired to make a Fender Eliminator. The sort that still has crafted style and lines, but keen and lean. Something of equal quality to the motorcycle it will become part of. It was also designed to fit with no drilling. Something only the future could bring.
This kit will fit Bonneville 900, Thruxton 900 and Scrambler 900
Adaptable to mount turn signals. All stainless hardware and mudguard. Add a Quick connect harness to make an easy connection.
Hook Up Details
HARNESS CONNECTS TO _________ ........................_____________ Red >>>>>>>>>>>>>>>> + Tail Light Blue>>>>>>>>>>>>>>>> + Brake Light Black Single>>>>> - Ground Lamp Black dual connector>>>>> - Ground Turn Signals Orange>>>>>>>>>>>>>>> + Turn Signal Left Brown>>>>>>>>>>>>>>> +Turn Signal Right
Connecting Specific lamps is explained below.
Turn Signals
BLACK.........POSITIVE +
BLACK/WHITE .......NEGATIVE -
Tail Lamp Connections
Lucas 525
BLACK / WHITE.................GROUND -
BLACK................................TAIL LIGHT +
RED.....................................BRAKE +
LED Smoke and LED Red Lens
BLACK..................GROUND -
BLUE.....................TAIL LIGHT +
RED.......................BRAKE +
